Touch Screen Display

for 43” Floor-type Capacitor Advertising Machine

Features

Advantages .

3 Years Warranty

3 Years Warranty

24/7 Usage

24/7 Usage

Ultra Resistant Blackening 110˚C

Ultra Resistant Blackening 110˚C

Double Sided Display

Double Sided Display

Eco-Friendly Power Timer

Eco-Friendly Power Timer

Full High Definition 1080p

Full High Definition 1080p

IPS Panel

IPS Panel

Optional Network Upgrade

Optional Network Upgrade

Plug and Play

Plug and Play

Temperature Control System

Temperature Control System

Sunlight Readable Display

Sunlight Readable Display

Wide Viewing Angle

Wide Viewing Angle

CASES

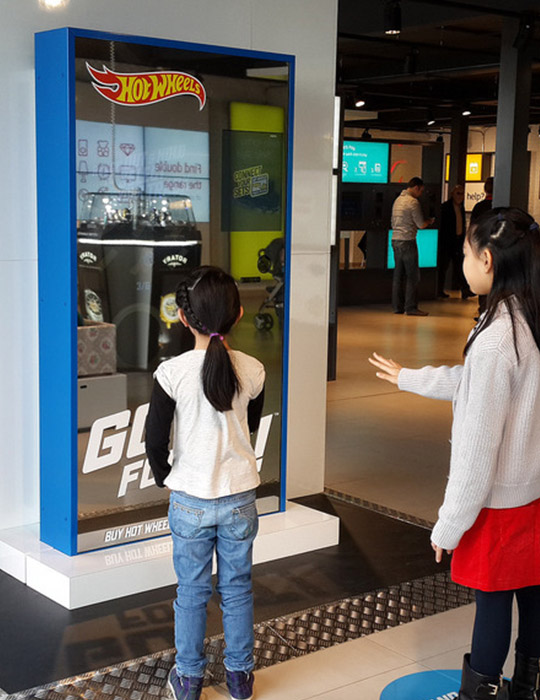

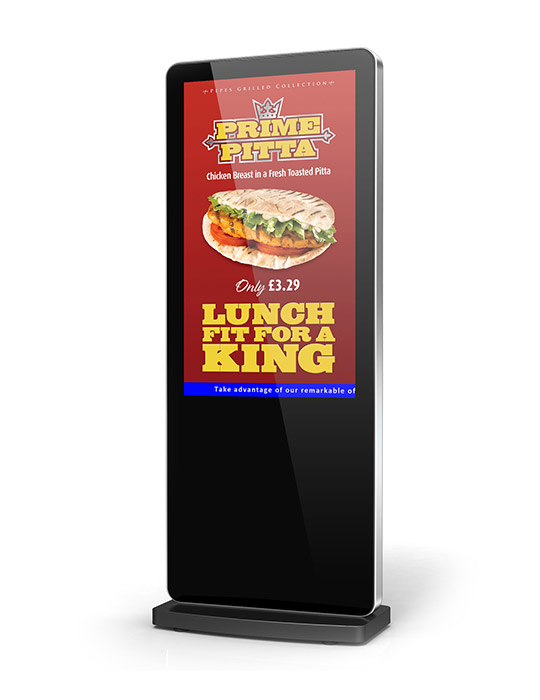

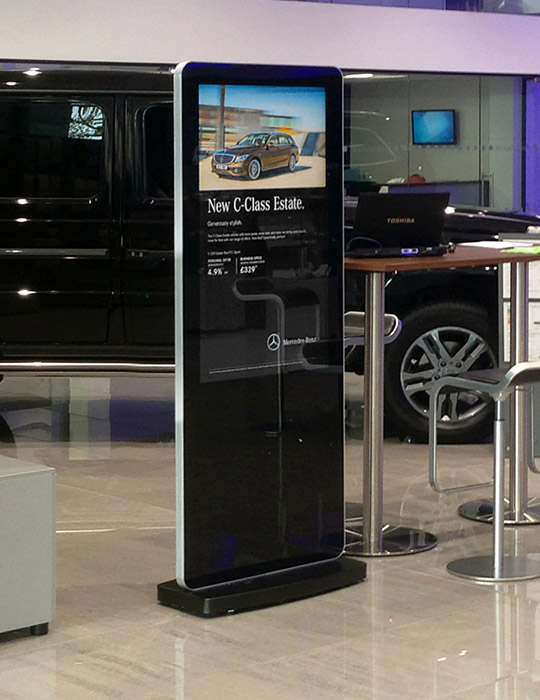

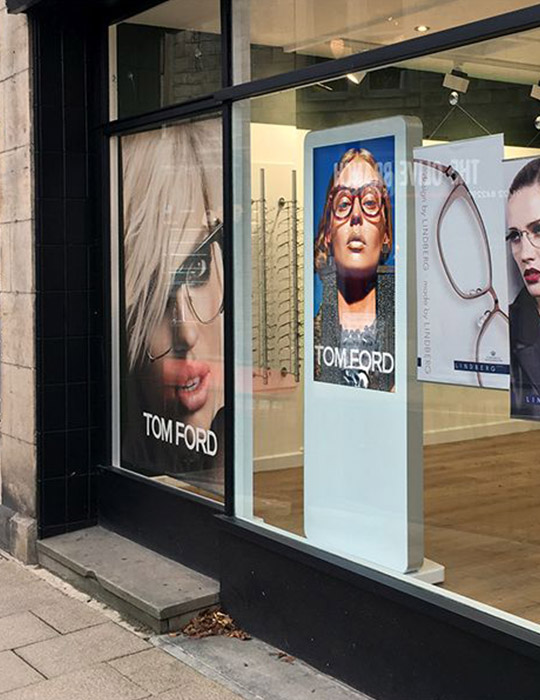

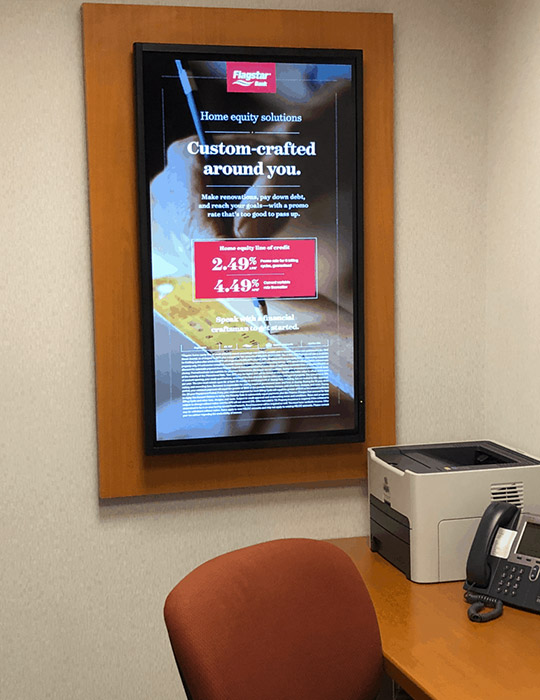

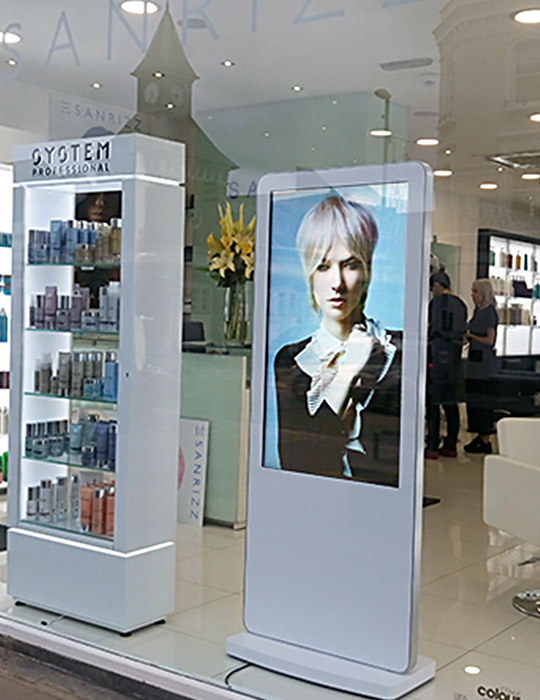

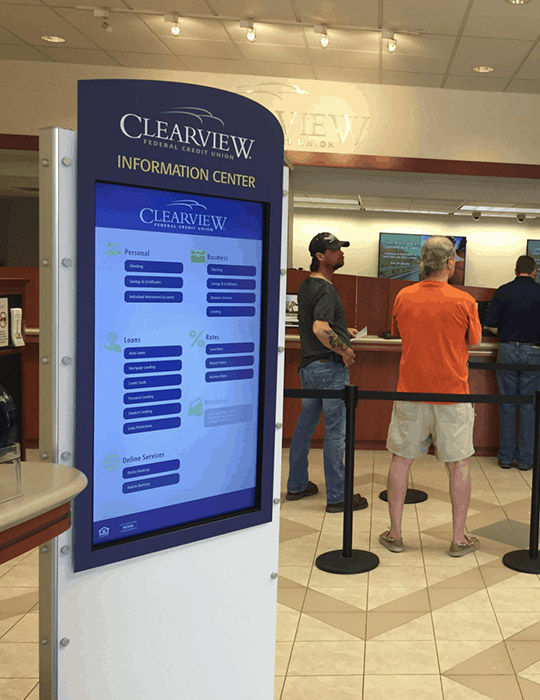

Product ShowCase .

Functions & Features .

1.Multiple capacitor touch points, quick reaction and high accuracy;

2.Supporting multi-media play, including graphs, videos, music, dynamic text, slide, interactive application, dynamic forms, web pages, static text, APK app, office, etc.

3.Supporting display of station caption LOGO, date/time/week, weather forecast and instant subtitles;

4.Supporting background graph and background colors;

5.Supporting real-time update of terminal content of dynamic forms, without releasing programs again;

6.Supporting VOD, click jump to the specified content, interactive program production and distribution;

7.Supporting custom screen template, diversified and flexible interface layout, and split screen and full screen;

8. Supporting drag-and-drop programming, and WYSIWYG edition;

9. Supporting digital poster, single synchronization, multiple slide modes of background music, which can replace traditional light boxes and posters;

10.Supporting simple program release interface to realize multiple control of play time, sequence, frequency, content and location easily, making program release in order;

11.Supporting smart scheduling, and multiple playing modes, such as loop playback, fixed time broadcasting and inter cut;

12.Supporting timed and appointed release of programs, re-release of old programs, and auto clear of overdue programs, reducing labor costs effectively;

13. Supporting remote update and management of contents that have been played; supporting import from or direct play of U disk;

14.Supporting interactive management, bus, etc.;

15. Supporting program preview and multi-level review to guarantee correct information transmission by checking at each level;

16.Supporting grouped management at terminal, and flexible authorization of multiple users;

17. Supporting organizational institutions to manage users, terminals, materials and playlists by level;

18.Supporting central management of advertiser information, materials and price strategies, and statistical summary of program broadcasting logs, making client management clearer;

19.Supporting breakpoint resume, fixed-time download and bandwidth setting, so as to utilizing network resources reasonably;

20.Supporting unattended super time-power-off at multiple periods;

21. Supporting remote terminal management, on-key control of volume, switching of display device, restart, sleep and etc.

22. Supporting remote terminal monitoring, real-time status check, providing rich business reports and management reports;

23. Supporting strong system health monitoring, fault alarm, and timely prompt of wrong information;

24. Supporting remote upgrade of terminal system, intelligent domain name analysis, safe backup, making operation & maintenance convenient and quick;

25.Supporting network release with WAN, LAN, VPN/WiFi/3G in order to facilitate trans-regional, inter-provincial and inter-city networking;

26.Supporting personalized customization and business expansion of enterprises

Detailed Parameters .

LCD Panel

  • Screen dimensions 43" 16:9
  • Resolution 1,920*1,080 FHD
  • Color 16.7M 8bit
  • Brightness 350cd/㎡
  • Contrast ratio 1,200:1
  • Response time 8 ms
  • Visual angle 178° (H)/178° (V)
  • Display area 941.2 (H)×529.4 (V) mm
  • Dot pitch 0.1634×0.4902 mm
  • Backlight LED
  • Service life 50,000H

Motherboard Parameters

  • Operating system Android 5.1 and above
  • CPU RK3288 quad-core Cortex-A17 1.8G
  • GPU Quad-core GPU Mail-764
  • Memory DDR3 2G+8G
  • Video H.264,VP8,RV,WMV,AVS,H.263,MPEG4
  • Audio MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP
  • Graph JPG, BMP, PNG
  • Loudspeaker 8ohm 8W, dual track
  • Other features RJ45 100M network interface, Wi-Fi 802.11b/g/n (2.4G) protocol, supporting all kinds of networks, 3G/4G (optional), watchdog, RS-232 communication protocol.

Power Consumption Parameters

  • Power supply AC 110-240 V, 50/60 HZ
  • Standby power ≤ 1 W
  • Overall power consumption ≤ 100 W

Touch Screen

  • Touch panel Thermal tempering level-7 explosion proofing Light transmittance>90%
  • Type Capacitive touch
  • Number of supported points 10
  • Response speed ≤ 5ms
  • Touch accuracy ≤ 6mm
  • Communication type Full speed USB
  • Touch type Finger
  • Touch life 60 million touches

Working Environment

  • Working humidity 20%-80%RH
  • Working temperature 0℃ — 45℃
  • Storage temperature -20℃ — 60℃
  • Storage humidity 10% - 75% RH

Overall Specifications

  • Net weight 40 KG
  • Gross weight 42 KG
  • Mounting mode Vertical type
  • Host 1,804.82 mm(H)*610 mm (W)*42.4 mm (T) (the base is not included)
  • Carton 2,050 mm (H)*660 mm (W)*480 mm (T)
  • Shell material and color Aluminum alloy, metal plate and silver/black (other colors available)
  • External interface Rocker switch, AC power supply socket, USB interface, RJ45, WiFi antenna, HDMI output
