Advantages .
3 Years Warranty
24/7 Usage
Narrow Bezel
Multiple Configurations
Eco-Friendly Power Timer
Full High Definition 1080p
IPS Commercial Grade Panel
LED Backlight
Portrait/Landscape Orientation
Temperature Control System
Automatic Tiling
Wide Viewing Angle

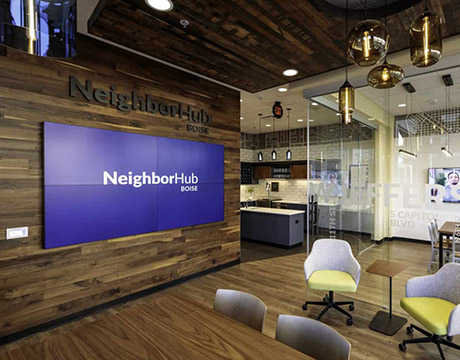

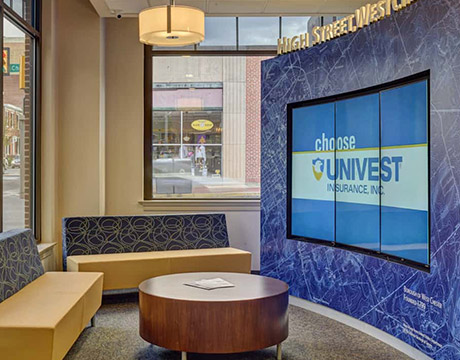

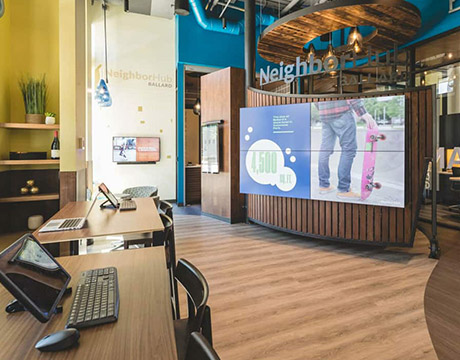

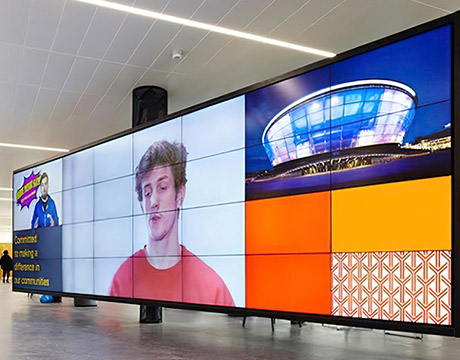

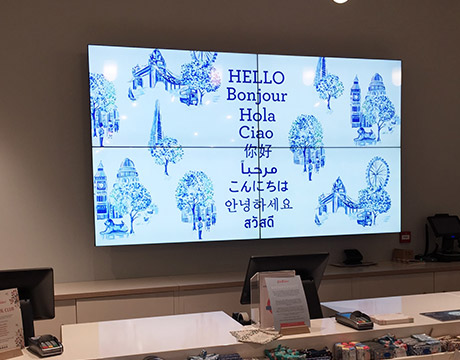

Seamless Video Wall
Our LCD Video Walls come with a 3.5mm bezel and are ideal for sleek and immersive chain displays or eye-catching video wall designs.

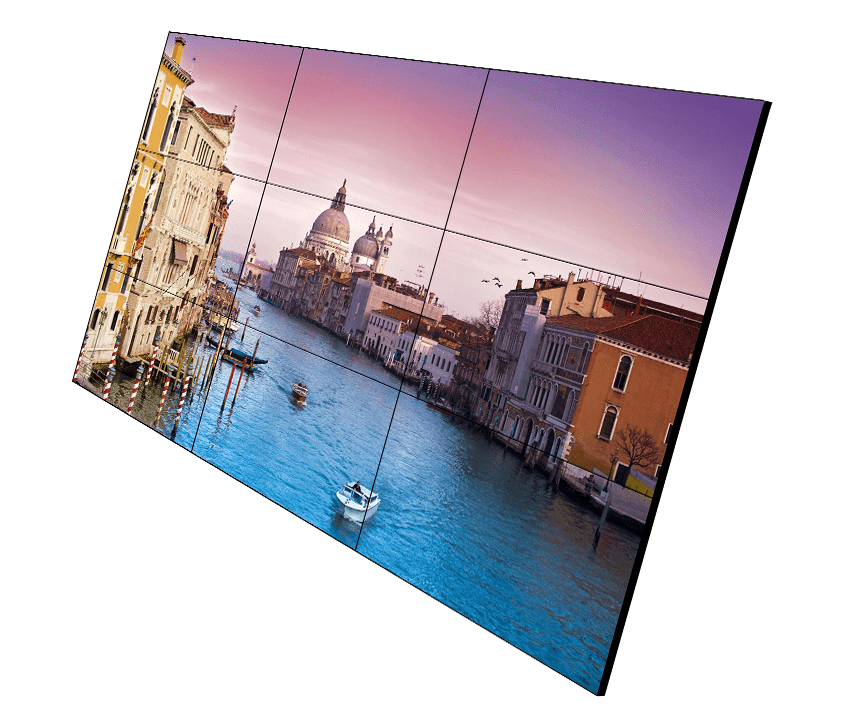

Embedded Video Matrix Processor
Our video wall displays can be used on their own, or form part of tiled video wall. Setting up a video wall display is painless, as our screens are able to form their own tiled image through their advanced matrix processor. You’ll require no additional hardware to set up custom tiled video wall displays.
IPS Commercial Grade Panel
Experience superior color uniformity, boundless viewing angles and vibrant image quality - in either landscape or portrait mode. Our screens use a tempered glass that prevents blackening even against direct sunlight, making them ideal for window displays.
Multiple Inputs
Our powerful screen interface supports a healthy selection of audio and video input types including VGA, HDMI,DVI, RGB/HV,Composite Video and YPbPr
Functions & Features .
1. Industrial grade A+ LCD panel, supporting 30,000 h non-stop running, highly reliable and stable;
2. LED backlight, with highly-integrated LVDS drive chip, constant-temperature control system, ultra-low power, entering the procurement list of government energy-saving and environmentally-friendly products;
3. Pictures being processed via 3D comb filter, to output pictures with higher definition, contrast and view angle;
4. Support automatic wake-up and shadow elimination, screen burning prevention and camera scenario enhancement;
5. Support edge screening, pixel-level image processing to the splicing edge, to ensure intact display and outstanding effects of entire splicing picture;
6. Complete signal interfaces, including the following signal input interfaces: 1-way VGA input, 1-way DVI input, 1-way HDMI input, 1-way CVBS input, supporting display of different signals;
7. Built-in splicing controller in splicing unit, supporting image splicing and display of unit combinations;
8. Support concentrated control, setting and adjustment of splicing unit parameters via computer;
9. Superior design process of industrial structure, with splicing seam between two edges ≤3.5mm, full-metal shell, resistant to static electricity, electric field and strong electric field; the product has passed authentication of 3C, CE, CB, FCC and ROSH;
10. Easy software operation, awarded with registration certificate of computer software copyright issued by National Copyright Administration.

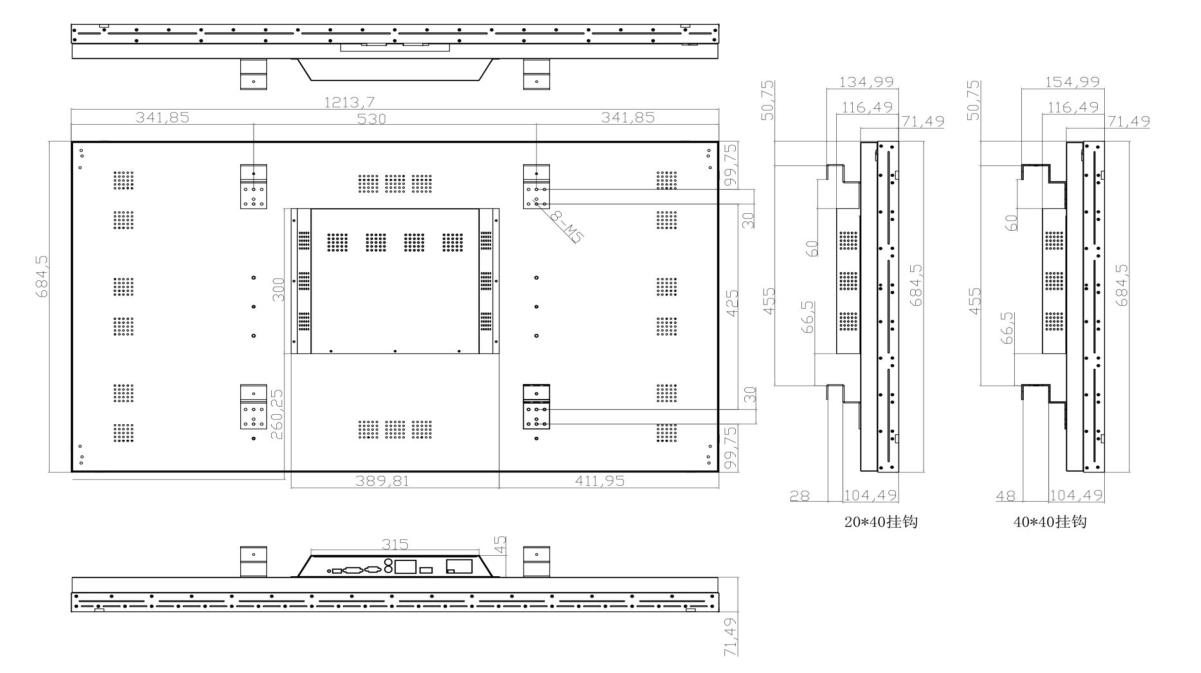

Diagram of Product Dimensions .
Detailed Parameters .
LCD Parameters
- Screen Size 55"
- Resolution 1,920*1,080 FHD
- Display Area 1,209.6 (H) ×680.4 (V) mm
- Display Ratio 16: 9
- Display Type LED
- Color 16.7M 8bit
- Brightness 500cd/㎡
- Contrast 1200:1
- View Angle 178° (H)/178° (V)
- Response Time 8 ms
- Start Period ≤ 6s
- Color System PAL/NTSC/SECAM
- Physical Seam ≤ 3.5mm
- Service Life ≥ 30,000 h
Interface Signal
- HDMI Input HDMI*1
- VGA Input VGA*1
- DVI Input DVI*1
- CVBS Input CVBS *1
- USB Input USB*1
- Type of Control Signal RS232*1
- Input Output RS232*2
Power Consumption
- Power Supply AC 110-240V, 50/60HZ
- Standby Power ≤ 0.5W
- Overall Power Consumption ＜ 210W
Work Environment
- Work Humidity 20% - 80%RH
- Work temperature 0℃ — 45℃
- Storage temperature -15℃ — 60℃
- Storage humidity 10% - 75% RH
Specification
- Weight 25 KG
- Dimensions 1213.7(W)×684.5(H)×116.5(D)mm
- Shell Material Full-metal shell, resistant to static electricity, electric field and strong electric field
- Installation Mode Wall mounting, wall mounting of front maintenance hydraulic support, floor stand, floor cabinet, embedding of front maintenance hydraulic support
Functions & Features of Built-in Splicing Controller
- Functions Single screen display, partial splicing display, overall splicing display, parameter adjustment
- Software Features As a visual interface, the software interface enjoys simple handling and supports settings including display signal selection, image effect adjustment, system function setting and language setting. The software can be running in the operating systems such as windows2000/xp/Win7/Win10, support setting, window management and plan management to splicing of embedded processor. Besides, it can integrate the matrix and surrounding vdevices for control. All functions can be realized in the visual software interface.
- Image Processing Fitted with picture quality compensation technique (LTI, CTI), motion compensation technique (AUTO MOVE), filter (3D cylindrical filter and digital noise reduction) and video system (PAL, NTSC), to control the images with higher stability, restore the picture authentically and improve system reliability.
- Operation Mode Centralized control via computer (control interface RS232)
- MTBF ≥ 30000H
