Features
Advantages .
3 Years Warranty
24/7 Usage
Ultra Resistant Blackening 110˚C
Double Sided Display
Eco-Friendly Power Timer
Full High Definition 1080p
IPS Panel
Optional Network Upgrade
Plug and Play
Temperature Control System
Sunlight Readable Display
Wide Viewing Angle

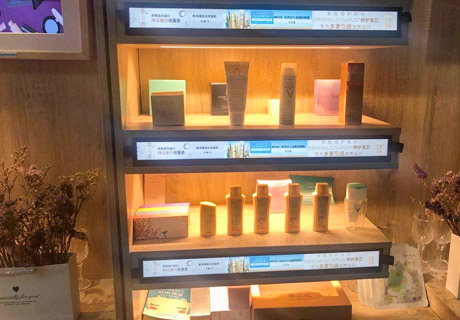

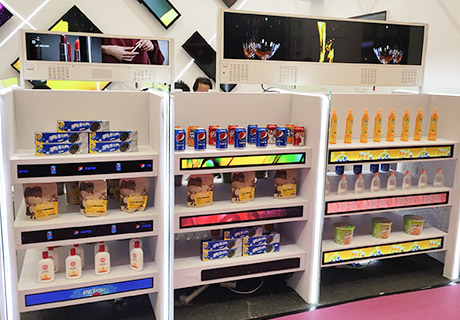

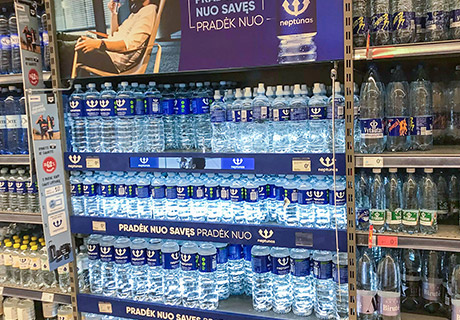

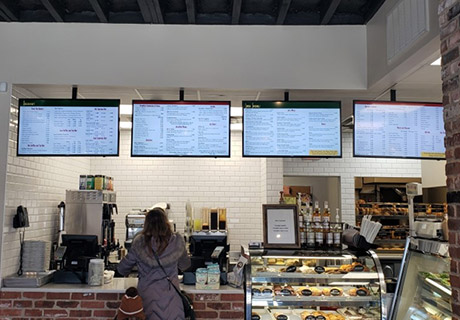

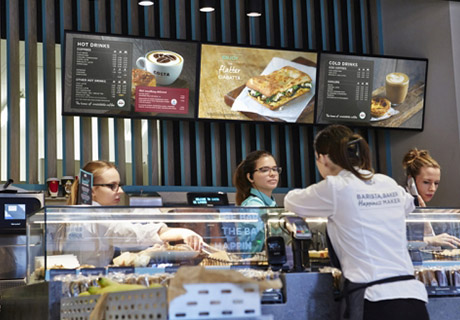

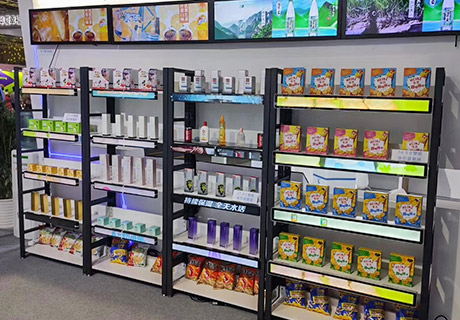

CASES

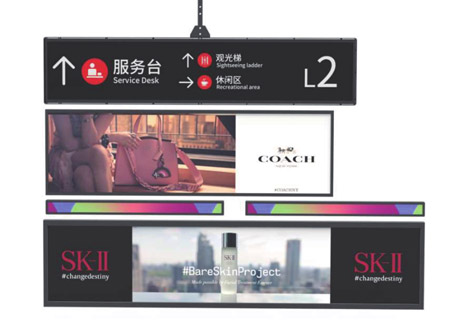

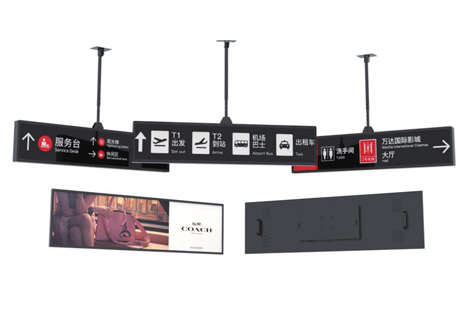

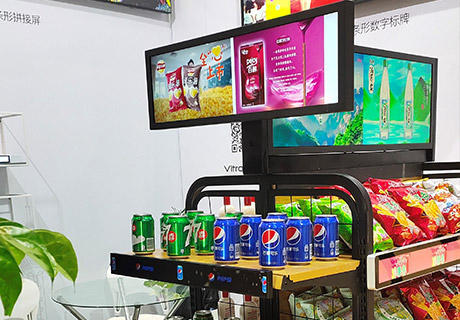

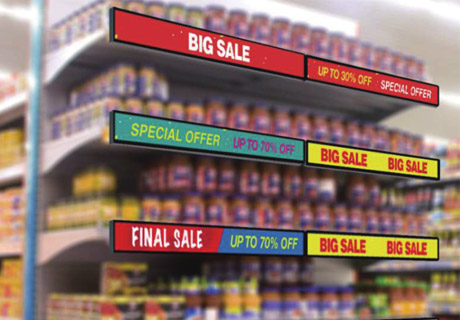

Product ShowCase .
Detailed Parameters .
| Model | HPX-M617X2 | HPX-M5842 | HPX-M3492 | HPX-M7621 |
| Screen size | 61.7 Inch | 58.4 Inch | 34.9 Inch | 76.2 Inch |
| Resolution | 3840*724 | 3840*1080 | 1920*108 | 3840*787 |
| Brightness | 700cd/m2 | 800cd/m2 | 700cd/m2 | 900cd/m2 |
| Contrast | 1000:1 | |||
| Working mode | Normally black, transmission | |||
| View area | 1542.88*294mm | 1432.48*405mm | 889.6*53mm | 1899*392mm |
| Dimensions | 1580*342*64mm | 1463*438*73mm | 920*83*30mm | 1942*477*69mm |
| Picture ratio | 16:3 | 16:4.5 | 16:1 | 16:3.3 |
| Display color | 16.7M | |||
| View angle | 89 / 89 / 89 / 89 | |||
| Working | 0 ~ 50℃ | |||
| Storage temperature | -20 ~ 60℃ | |||
| Relative humidity | 3% ~ 99% condensation | |||
| Backlight life | 50000 hrs | |||
| CPU basic frequency | Cortex?-A17 1.8GHz | |||
| Mainboard chip | RK3288 | |||
| Memory | 2GB DDR3/4G supported atmost) | |||
| Storage unit | eMMC 8G/16G/32G(Optional) | |||
| USB interface | USB2.0*2 | |||
| LCD interface | VBY ONE output *1 | |||
| Program | USB flash disk, network | |||
| LCD interface | VBY ONE output *1 | |||
| Program | USB flash disk, network | |||
| Infrared interface | Remote receiver *1 | |||
| Communication Network Interface | RJ45*2.4G/5G.WIFI | |||
| Input voltage | AC 220V | |||
| Operating system | Android | |||
Customized Solutions
